1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

Item No. VPS09007
Discontinued
Brand Logo
4.6 out of 5 Customer Rating

1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

Item No. VPS09007
This Item is No Longer Available
Selected Store

Product Details

Only Available Online, The VS4-10 Phoenix Portal is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles!
Key Features
  • VFD Twin Transmission - Selectable Overdrive and Dig
  • F10 Portal Axle Housings
  • Brass Inner Reinforcement Tubes
  • Universal-Style Front Axle Shafts
  • Double Shear Shock Mounts
icon-box
In The Box
  • (1) VS4-10 Phoenix Portal Kit
  • (1) Phoenix Polycarbonate Body
  • (4) 1.9 VXT Tires
  • (4) 1.9 Incision KMC KM233 Hex Beadlock Wheels
icon-how-to
Needed to Complete
  • (1) 4-Channel Radio System
  • (1) Standard Steering Servo
  • (2) Standard Servos for DIG and Selectable Outdrive (OPTIONAL)
  • (1) Electronic Speed Control
  • (1) 540 Size Motor
  • (1) 7.4v - 11.1v Battery
  • (1) Charger

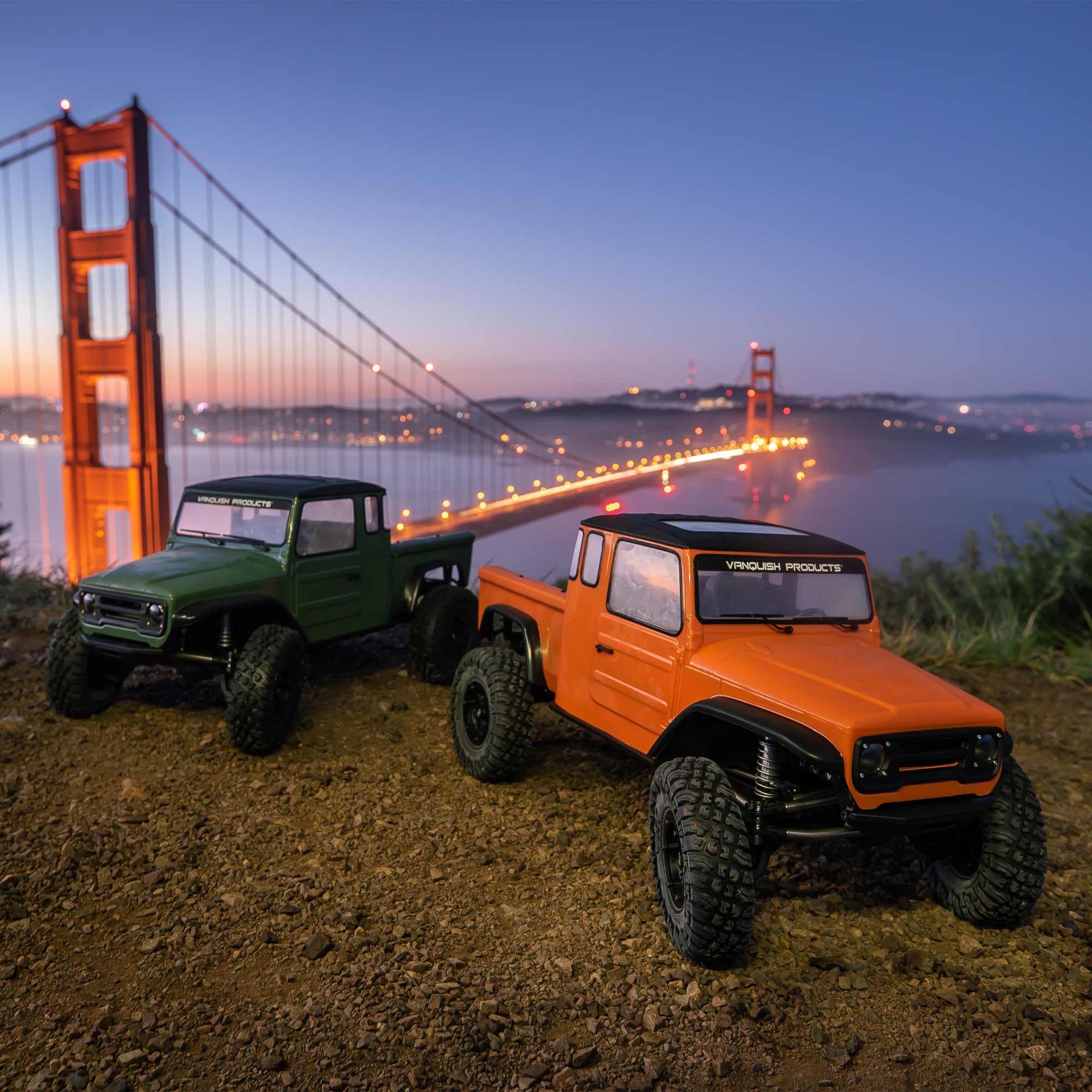

1/10 VS4-10 Phoenix Portal Axle Rock Crawler Kit

VS4-10 Phoenix Portal

The VS4-10 Phoenix Portal is the first platform to feature the Vanquish Products VFD Twin transmission (patent pending) and F10 Portal Axles. This combination provides performance advantages never before offered in a scale kit of its kind. The VFD Twin incorporates Selectable Overdrive Shifting and a 3-position dig unit into one compact package. The molded F10 Portal Axles utilize a high clearance design which minimizes the size of the pumpkin and maximizes clearance around the C-hub and knuckle. Connecting the VFD Twin to the F10 Portal Axles are the ISD10 driveshafts. The ISD10 Driveshafts have machined CV style joints at each end with molded splined shafts between them for smooth and efficient performance.

Features

  • VFD Twin Transmission - Selectable Overdrive and Dig
  • F10 Portal Axle Housings
  • Offset Pumpkin Front Portal Axle
  • Centered Pumpkin Rear Portal Axle
  • Brass Inner Reinforcement Tubes
  • Machined Portal Gears
  • Universal-style front axle shafts
  • Double Shear Shock Mounts
  • Aluminum 12mm Hexes for 6mm output shafts
  • ISD10 Driveshafts

VS4-10 Phoenix Review



Twin Transmission

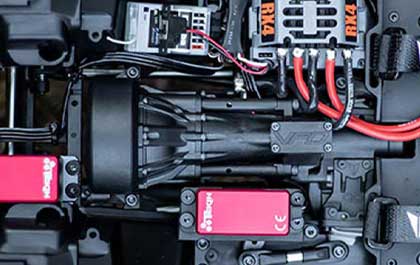

VFD Twin Transmission

The VFD Twin Transmission (Patent Pending) kit is an evolution of the original VFD. Taking the same balance of performance, scale appearance and strength.



Portal Axles
F10 Portal Axles

The F10 Plastic Molded Portal axles benefit from Vanquish Product’s years of design experience in making the industry’s best aluminum axles. The molded F10 Portal axles feature an ultra rigid design with an integrated truss that ties both ends of the axle together, as well as brass inner reinforcement tubes to add more strength and provide some weight down low to the vehicle.



Chassis

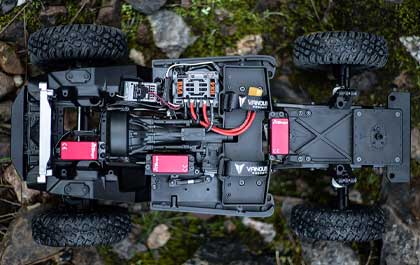

Chassis

The VS4-10 Chassis is made to provide you with a balance of scale looks and unhindered performance. The steel C-channel design provides scale detail, molded front and rear cross members fill the chassis rails in the highest stress locations for ultimate strength and provide features like dual servo mounts, winch line routing, and a fuel cell.



Suspension

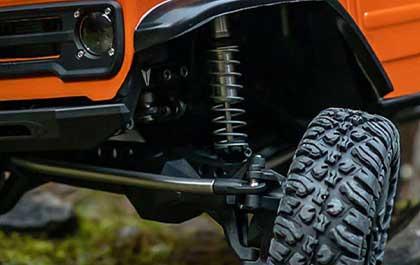

Suspension

The VS4-10 features Incision 80mm S8E shocks with larger 8mm bore aluminum threaded bodies, dual X-ring seals, locking preload collars, keyed spring cups, polished steel shock shafts, and machined pistons.



Body

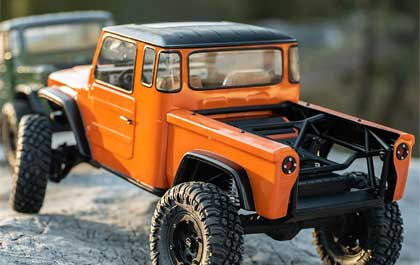

Phoenix Body

Kit includes a clear polycarbonate Phoenix body along with molded plastic detail parts, a full interior headlight and tail-light buckets and hidden body clips.



Wheels and Tires

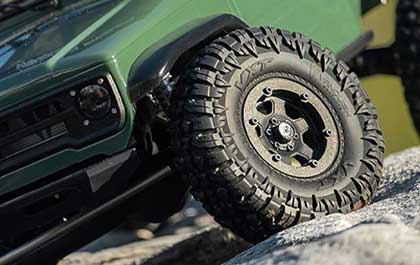

Wheels and Tires

The Vanquish 1.9 VXT Tire offers a mix of scale appearance with high performance off-road capability. Mounted on KMC 1.9 KM233 wheels, these wheels and tires will provide optimal performance on the trails!



Product Specifications

Battery Sold Separately
Body Polycarbonate
Charger Sold Separately
Completion Level Kit
Drive Type Forward/Brake/Reverse
Drivetrain 4WD
Gear Ratio 57.2:1
Inner Tire / Outer Wheel Diameter 1.9 in
Motor Size 540
Pinion 15T
Power Type Electric
Product Height 9.84" (250 mm)
Product Weight 6.5lbs (2.9kg)
Product Width 9.84" (250 mm)
Radio Sold Separately
Receiver Sold Separately
Scale 1/10
Servos Sold Separately
Speed Control Sold Separately
Spur Gear 52T
Suspension Solid Axle
Tire Tread VXT 4.65” 1.9” Tires
Vehicle Type Rock Crawler
Water-Resistant Yes
Wheel Hex Size 12mm
Wheelbase 12.3" (312 mm)
